DINO 24
Prodotti » Industrial Electronics » Detection sensors » Dino 24
Motion sensor for automatic doors
The DINO 24 microwawe motion detector is a concentrated beam volumetric sensor (RADAR), for use as an automatic closing controller with a high sweeping frequency. It detect the presence of people or vehicles that move within its working range and is adjustable with an appropriate trimmer.
A modern concept, it uses an expressly designed planar antenna and detecting circuitry using SMD technology
The mounting base is made of plastic and the semitransparent cover is made of polycarbonate; it is compact and has an elegant and likeable design.
Lighted indication of detection using LED which is visible through the semitransparent cover when the sensor is activated.

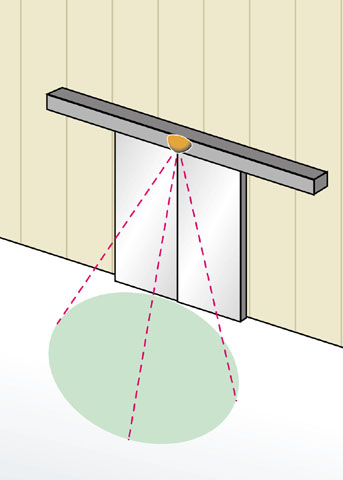

Field of detection is adjustable for sensibility with linear trimmer and is easy to aim, both vertically and horizontally, with the simple rotation of the antenna on the friction support.
Easy to install wall or ceiling mounting, without need for adaptors.
Detection distance 4 m (Typical)
Frequency emitted 24 GHz K band EEC Standard
