DOMINO 14
Prodotti » Industrial Electronics » Detection sensors » Domino 14
Motion sensor long distance for industrial use
The motion sensor DOMINO 14 is a volumetric detector (RADAR) with concentrated beam, based on microwawe technology
Detects the presence of people or vehicles which move within its sensitive zone

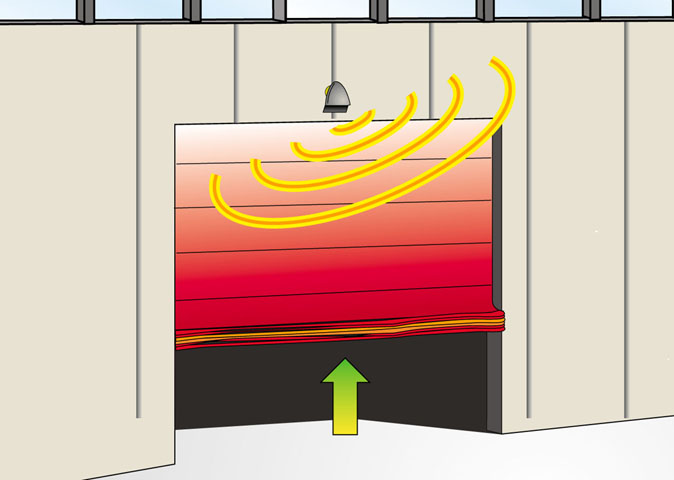

Its large capacity and detection field make if particularly qualified for the control and supervision of doors, main gates and automated industrial barriers
Designed using modern SMD technologies, utilizing a planar antenna expressly designed
It is possible to select the detection in MONO or BI-DIRECTIONAL to check the direction of movement
Detection field and distance adjustable with linear trimmer
Practical, sealed container adapted for heavy use, protected against atmospheric condition, for external applications
Strong, simple retainer footpiece and adjustment system, with orientationon all axes and single point locking feature
Wall or ceiling mounted
Detection distance 12m ( typical )
Mounting height 6m ( max )
Frequency emitted 24 GHz K band EEC Standard
