TELEDOOR
Prodotti » Industrial Electronics » Detection sensors » Teledoor
Coded remote passage detector
Remote data transmission for vehicles acknowledgment
Pat. n. TO 2004A000063
Main uses
Selective opening control for industrial gates,doors and barriers
Control for selective access to automatic parking
Control of vehicles transit in specific passages
Operating principle

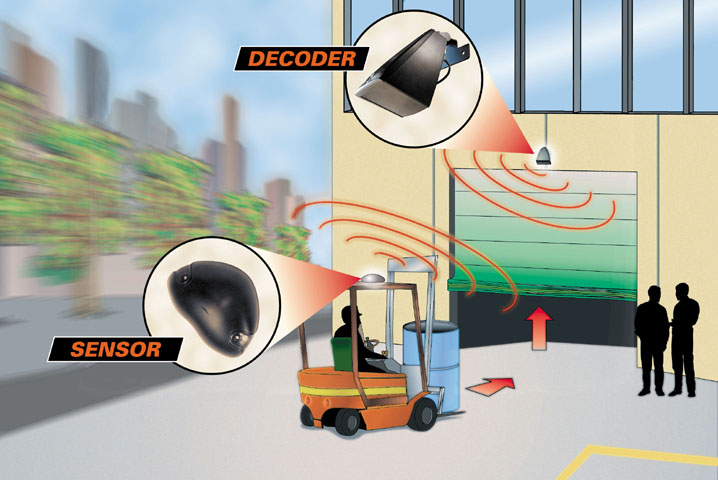

TELEDOOR includes the stationary DECODER TRX64 with receiving-transmitting functions, positioned near the passage to be controlled and linked to the supply 12/24 V AC/DC and the moving SENSOR RT16 self-supplied by lithium batteries, positioned on the vehicle involved in the access.
The SENSOR work constantly in stand -by with a very low consumption and operate only in the intervention field of the DETECTOR
The self-teaching system of DECODER allows the insertion and erasing of the SENSOR only to press one internal push-button.
The orientation of the sensible field of the antenna, assures the optimisation of the itervention area
LED indications display the operating functions.
Main characteristics
Insensibility to light troubles
Alternative to magnetic loop detectors
Self-teaching code for easy insertion and/or cancellation
Each DECODER can store and acknowledge 60 SENSOR
Moving SENSOR supplied by long-life lithium batteries.
TELEDOOR-RX
Combined system of stationary DECODER with receiving Radio 433 MHz , both with self-teaching code
The DECODER identifies through a digital acknowledgment the SENSOR and the RADIO system with remote control allows a further combined confirmation.
TELEDOOR-RX is composed by:
-DECODER TRX6433 stationary
-SENSOR RT16 moving
-TX2 or TX4 remote control
